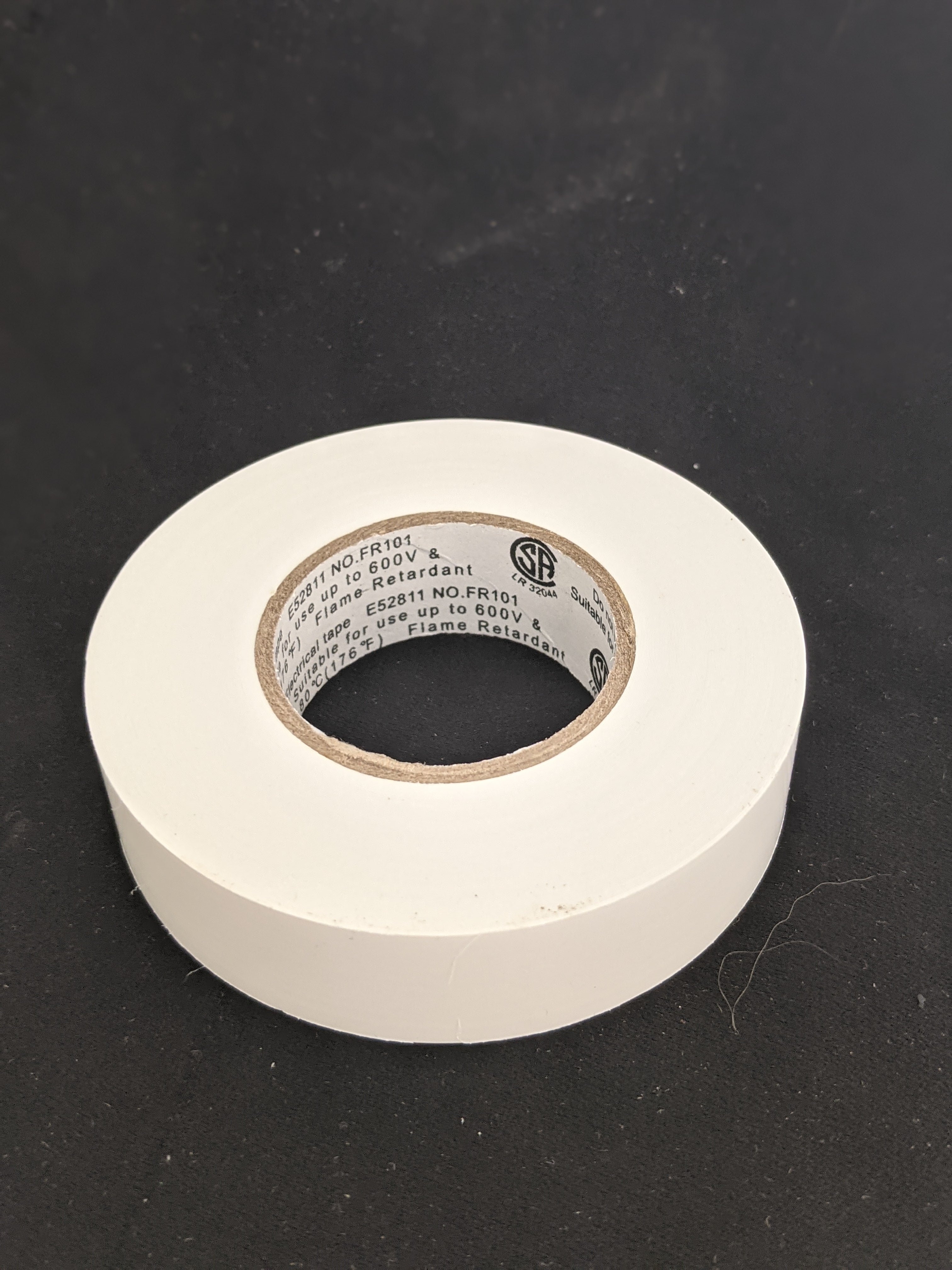

7 mil White Vinyl Premium Electrical Tape


Price per roll:

Width: Rolls per case: Min. Rolls Order: < 1 Case: 1 - 4 Cases: 5 - 9 Cases: 10+ Cases:
1/2" 96 48 $1.50 $1.25 $1.15 $1.11
3/4" 64 32 $1.84 $1.53 $1.42 $1.36
1" 48 24 $2.30 $1.92 $1.77 $1.70
1-1/2" 32 16 $3.45 $2.88 $2.65 $2.56
2" 24 12 $4.60 $3.83 $3.54 $3.41
3" 16 8 $6.90 $5.75 $5.31 $5.11

Custom Sizes Available


Part Number: CO7WH

Description:  This tape is a vinyl plastic electrical tape is a general purpose electrical grade, pressure sensitive vinyl tape that gives complete electrical and mechanical protection for most general taping jobs with more dielectric protection than similar tapes. Method of bonding the adhesive to the vinyl prevents transfer and gives greater adhesive strength. Thin, tough and resilient, it can be stretched to conform easily without breaking.

Recommended Uses: General splicing. Primary insulation for splices at not more than 600 volts. Protective outer jacket. Harnessing and binding cables.


Physical Properties:

Color: White
Thickness: 7 mil
Adhesion to Steel: 20 oz./inch Adhesion to Backing: 20 oz./inch
Elongation: 200% Tensile Strength: 18 lbs./inch
Sizes: 1/2", 3/4", 1", 1-1/2", 2" and 3"

Electrical Properties:

Dielectric Strength: 7,000 volts standard
6,300 volts wet
Dielectric Constant:
3.2
Power Factor:
0.01
Insulation Resistance:
1 x 106 megohms

The information on this data sheet is true to the best of our knowledge.  Since the condition, during the use of this product, can vary greatly we recommend the user test the product for their specific application.
