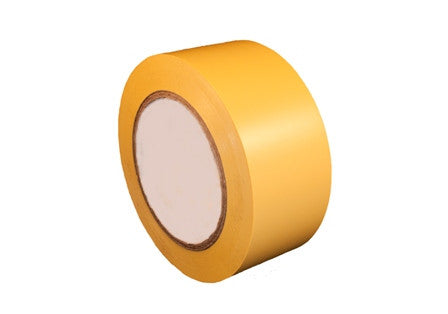

7 mil Yellow Vinyl Premium Electrical Tape


Price per roll:

Width: Rolls per case: Min. Rolls Order: < 1 Case: 1 - 4 Cases: 5 - 9 Cases: 10+ Cases:
1/2" 96 48 $2.02 $1.68 $1.56 $1.50
3/4" 64 32 $2.49 $2.07 $1.91 $1.84
1" 48 72 $3.11 $2.07 $1.91 $1.84
1-1/2" 32 48 $4.98 $3.11 $2.87 $2.76
2" 24 36 $7.46 $4.15 $3.83 $3.69
3" 16 24 $9.33 $6.22 $5.74 $5.53

Custom Sizes Available


Part Number: CO7YE

Description:  Yellow electroplaters vinyl tape is a tough, resilient tape which can be stretched to conform easily without breaking. CO7YE is a vinyl tape with rubber adhesive formulated specifically for electroplating. It meets Federal Specification HH-T-0025, Amendment 2. Colored Vinyl tapes are available in solid colors and stripes, and can be used for aisle marking and color coding. It can be written on with ball point pen.

Recommended Uses:  Used for masking various surfaced during industrial electroplating operations.

Physical Properties:

Color: Yellow
Sizes: 1/2", 3/4", 1", 1-1/2", 2" and 3"
Thickness: .007 in. Tensile Strength: 17 lbs./in.
Adhesion to Plate: 16 oz./in. Adhesion to Backing: 16 oz./in.
Elongation: 200% Temperature Ranting: 80C €“ 105C

The information on this data sheet is true to the best of our knowledge.  Since the condition, during the use of this product, can vary greatly we recommend the user test the product for their specific application.
